Digital multimeter - NCV - with USB PC connection Maxwell-Digital 25318

Nettó ár
Price visible after login.
Az ár az áfát nem tartalmazza.

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

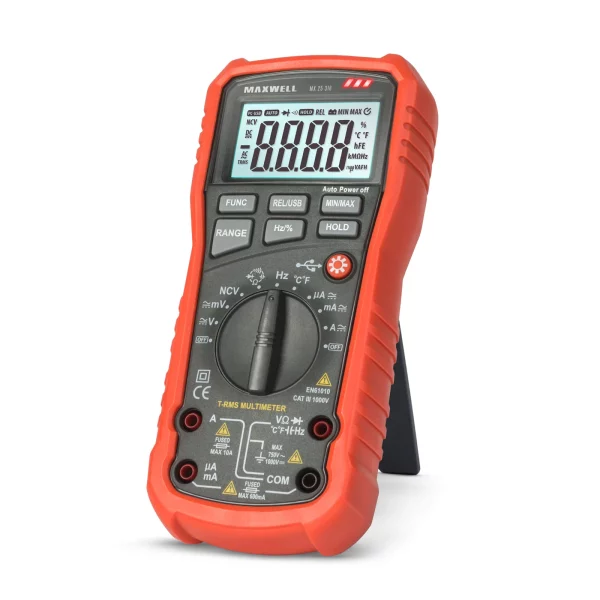

Digital multimeter – NCV – with USB PC connection

Termékleírás

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

Are you one of those people who look for the best quality in all circumstances? Our multimeters are made for you! The improved version of the MX 25328 measuring device, which has, among other things, a non-contact function, automatic measurement limits, backlighting, and can also transmit the measured data to your computer via a USB connection. Whether it is measuring voltage, current, resistance, capacitance or temperature, this measuring instrument stands its ground.The measurement results are displayed in a large size, with sharp contrast and backlight, so they are easy to read even in poor lighting conditions.

By using the automatic measurement limit function, you can easily and quickly get excellent measurement results. This means that you do not have to worry about setting the appropriate measurement limits, the device automatically selects the appropriate one. This can make your work much more efficient, but at the same time, if necessary, it is also possible to modify the measurement limits manually.

With the help of the sensor on the top of the device, you can detect voltage without breaking the wiring. Its durable device housing ensures problem-free use in all conditions.

  • Relative measuring mode
  • Diode test
  • Continuity test
  • Sound signal
  • Data retention
  • Backlight
  • Automatic shut down

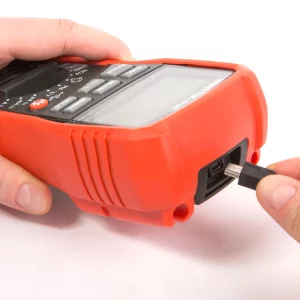

  • Can be connected to a PC with a USB cable
  • Taccessories: PC software, USB cable, thermometer probe with banana plug, test lead

Display: 4 digit / 22 mm character height
DC V: 0,01 mV – 1000 V
AC V: 0,01 mV – 750 V
DC A: 0,1 µA – 10 A
AC A: 0,1 µA – 10 A
Resistance: 0,1 Ω – 60 MΩ
Capacitance: 1 pF – 100 mF
Frequency: 0,001 Hz – 10 MHz
Temperature: -20 – (+1000)°C / -40 – 1832°F
Fuse: FF500 mA/1000V, FF10A/500V
Accuracy: +-0,5 – 5% (see user manual)
Power source: 1 x 9V battery (not included)
USB cable length: 80 cm
USB cable color: Black
Operating temperature: 0 – (+40)°C
Operating humidity: less than 80% relative humidity
Storage temperature -10 – (+60)°C
Size: 200 x 92 x 60 mm
Weight: ~230 g
