Measuring devicesMultimeters

Digital multimeter with battery tester, temperature measurement + work light function Maxwell-Digital 25223

Nettó ár

Price visible after login.

Az ár az áfát nem tartalmazza.

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

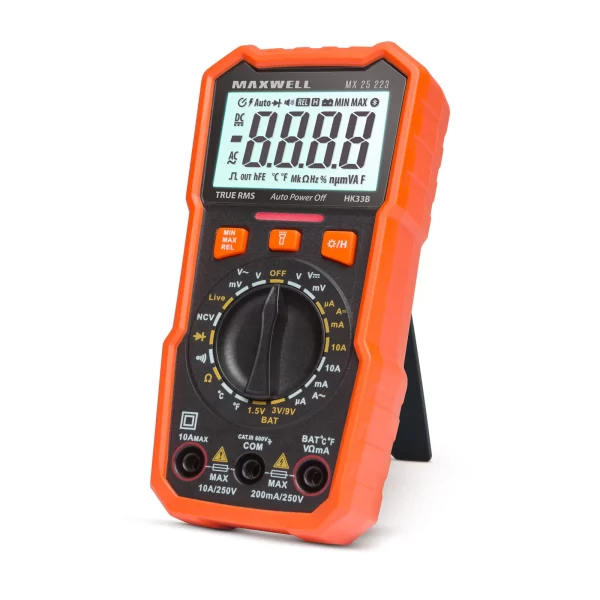

Digital multimeter with battery tester, temperature measurement + work light function

Termékleírás

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

The new MX series of Maxwell instruments strengthens the category of compact devices. In addition to its basic functions, it is equipped with a work light function, backlight and non-contact voltage detection. With the help of the sensor on the top of the device, you can detect voltage without breaking the wiring. Its durable device housing ensures problem-free use in all conditions.

NCV (Non-Contact-Voltage) Detection
Temperature measurement
MIN / MAX / REL
Frequency measurement
Battery testing
Phase Search with Light and sound indication
Tensile test
Data hold function
Backlight

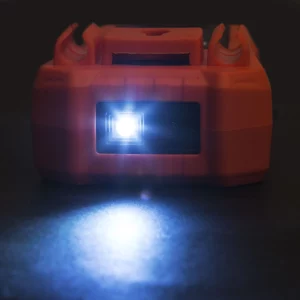

Work light function
Sound signal
Accessories: test cable, battery (2 x AAA 1,5V)

Display:	4 digit / 31,5 mm character height
DC V:	0,01 mV – 600 V
AC V:	0,01 mV – 600 V
DC A:	0,1 μA – 10 A
AC A:	0,1 μA – 10 A
Resistance:	0,1 Ω – 20 MΩ
Temperature:	-20 – (+1000)°C or -4 – (+1832)°F
Fuse:	F200 mA/250V, F10A/250V
Accuracy:	+-0,5 +-3%+-5 (see in user manual)
Power source:	2 x AAA 1,5V battery (included)
Operating temperature:	0 – (+40)°C
Storage temperature:	-10 – (+50)°C
Size:	150 x 75 x 47 mm
Weight:	~300 g

Műszaki adatok

Brand	Maxwell-Digital
Barcode	5999117120204
TARIC	9030310090
Packaging	1 db
Súly	340 g
Méretek	5,5 × 11,5 × 17 cm
