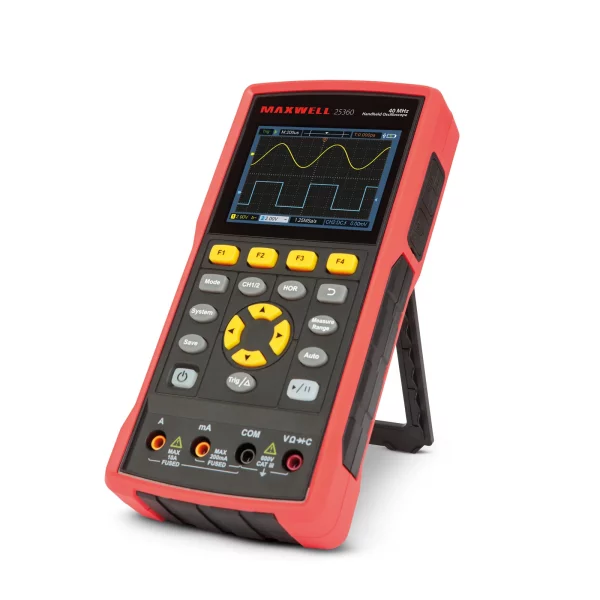

Handheld oscilloscope – battery powered – 3.5″ colourful LCD – AC/DC, 400V, 40MHz, 2 channel, 8K/4K

Termékleírás

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

An oscilloscope is a measuring instrument that can display the variations of electrical signals over time in a graphical form. Oscilloscopes are generally used to analyse the frequency, amplitude and shape of electrical signals. It is also widely used in electronics laboratories, maintenance workshops and educational institutions.

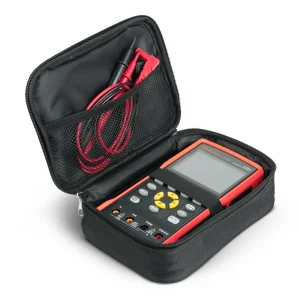

This portable, battery-powered measuring device is the ideal choice for electronics enthusiasts. It is ideal for field measurements where no mains electricity is available. Thanks to its compact size and carrying case, it is easy and safe to transport. Its ease of use and versatility make it an excellent companion for everyday work and hobby activities.

Non-slip housing
Two-channel
Two types of operation modes

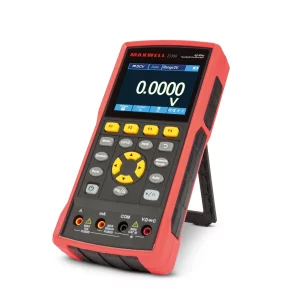

Multimeter function
Large, coloured display
Adjustable brightness and screen time
High capacity battery
Type-C plug
Wide measuring range
Automatic and manual measurement limit setting
Triggering configuration
Internal memory
File and screen saving
Computer software

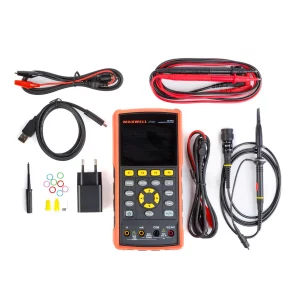

Accessory measuring probe, measuring tips, crocodile clips, data cable, mains charger, carrying case

General informations:
Size:	95 x 200 x 38 mm
Display:	3,5″ colorful LCD
Display resolution:	320 x 240 px
Energy source:	2 x 2200 mAh 3,7V 18650 built in battery
Connector:	USB Type-C
Adapter:	100 – 240 V AC, 50/60 Hz -> 5V DC, 2A
Power:	<5 W
Operating temperature:	0 – (+40)°C
Operating humidity:	<90%
Colour:	Red
Weight (without battery):	~600 g
Oscilloscope:
Bandwidth:	40 – 200 MHz
Channel:	2
Sampling speed:	125 MSa/s – 1 GSa/s
Waveform refresh rate:	10.000 wfms/s
Probe attenuation (software):	1X, 10X, 100X, 1000X, 10000X
Input voltage:	Max. 400V
Trigger type (edge triggering):	Automatic, normal, single use
Multimeter:
DC V:	200 mV – 1000 V
DC A:	200 mA – 10 A
AC V:	200 mV – 750 V
AC A:	200 mA – 10 A
Resistance:	200 Ω – 100 MΩ
Capacity:	20 nF – 2 mF

Műszaki adatok

Brand	Maxwell-Digital
Barcode	5999117111813
TARIC	9030200000
Packaging	1 db
Súly	1030 g
Méretek	9 × 15,5 × 24 cm
