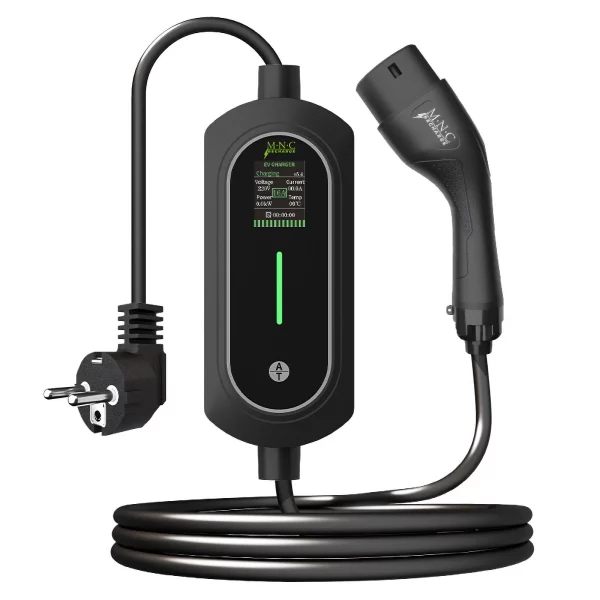

Electric vehicle charging station with bag – EVSE Type2 – 5 m – max. 3.5 kW – 1 x 16A – 110–240V AC MNC 54932

Nettó ár

Price visible after login.

Az ár az áfát nem tartalmazza.

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

Electric vehicle charging station with bag – EVSE Type2 – 5 m – max. 3.5 kW – 1 x 16A – 110–240V AC

Termékleírás

In stock. Dispatch within 1–2 business days.

Sales unit: 1 db.

Charge your electric vehicle safely and conveniently with this high-quality EVSE charging station! The Type2 cable with max. 1 x 16A, 3.5 kW output is compatible with most electric and plug-in hybrid vehicles. The built-in 1.8″ display shows voltage, current, power, temperature and charging time in real time. The charging current can be adjusted as needed (8A / 10A / 13A / 16A), allowing it to adapt to different environments and charging requirements.

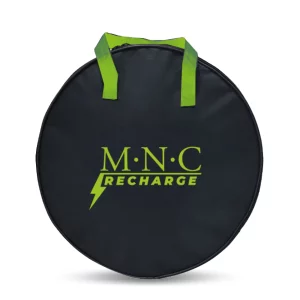

The included carrying bag allows easy transport and storage, while the robust construction and premium materials ensure long service life. Ideal for home charging or for holidays and travel.

Compatible with E-type European sockets (CEE 7/7)
Standard Type2 (Mennekes) connector for electric vehicles
Large colour LED status indicator
Touch-button simple control
LCD display showing current, voltage, power, temperature, charging time
Adjustable charging current with memory function (8-10-13-16A)
Timer function for charging start (0-2-4-6-8 hours)
Overcurrent, overvoltage, undervoltage, lightning, AC30MA leakage and overheating protection for safe charging
Certified CE, TÜV, RoHs, FC, UKCA, CQC
IP65 protection with rubber cap

Charger-side connector:	CEE 7/7 F type 90°
Vehicle-side connector:	Type 2 (Mennekes) – IEC 62196-2
Cable length:	5 m
Max. power:	3.5 kW
Adjustable charging current:	8A, 10A, 13A, 16A
Charging voltage:	100 – 240V AC (+-20%)
Charging frequency:	50/60 Hz
Insulation resistance:	100 MΩ (500 V DC)
Cable type:	EV 450/750V 3G2.5mm² – 1G0.5mm², H05VV-F 3G2,5 mm²
Display:	1.8″ LCD
IP protection:	IP65
Rubber protective cap:	Yes
Physical impact protection:	Max. 1 m drop or Max. pressure from a 2T vehicle
Operating temperature:	-25°C-(+55)°C
Operating humidity:	5 – 95% RH
Mechanical lifespan:	>10 000x connection without charging
Controller unit size:	250 x 92 x 53 mm
Colour:	Black
Weight:	~1.8 kg

Műszaki adatok

Brand	MNC
Barcode	5999117127722
TARIC	8537109199
Packaging	1 db
Súly	2272 g
Méretek	31 × 30 × 10 cm
