Electric vehicle charging station with bag – EVSE Type2 – 5 m – max. 11 kW – 3 x 16A – 400V AC MNC 54933

Nettó ár

Price visible after login.

Az ár az áfát nem tartalmazza.

Elfogyott

Out of stock. Expected arrival: Október 12..

Sales unit: 1 db.

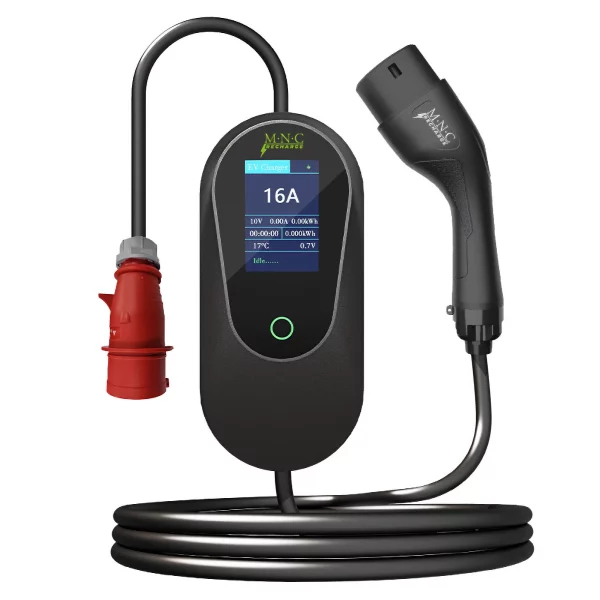

Electric vehicle charging station with bag – EVSE Type2 – 5 m – max. 11 kW – 3 x 16A – 400V AC

Termékleírás

Out of stock. Expected arrival: Október 12..

Sales unit: 1 db.

Charge your electric car safely and conveniently with this high-quality EVSE charging station! The Type2 cable with a maximum of 3 x 16A, 11 kW power is compatible with most electric and plug-in hybrid vehicles. The built-in 1.8″ display shows voltage, current, power, temperature and charging time in real time. The charging current can be adjusted as needed (3x6A / 3x8A / 3x10A / 3x13A / 3x16A) to suit current charging requirements and conditions.

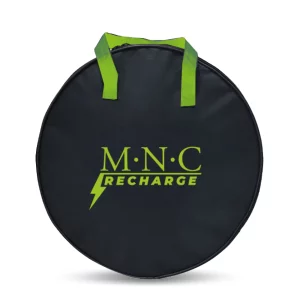

The included carrying case makes it easy to transport and store, while the robust construction and high-quality materials ensure long service life. Ideal for home charging or for travel and holidays.

Compatible with CEE 3 x 16A industrial red connectors (Ø56 mm)
Standard Type2 (Mennekes) connector for electric vehicles
Large colored LED status indicator
Touch buttons for easy control
LCD display showing current, voltage, power, temperature and charging time
Adjustable charging current with memory function (3×6, 3×8, 3×10, 3×13, 3x16A)
Charging start timer (0-2-4-6-8 hours)
Protection against overcurrent, overvoltage, undervoltage, lightning, AC30MA leakage and overheating
Certified with CE, TÜV, RoHs, FC, UKCA, CQC standards
IP65 protection with rubber cap

Charger-side connector:	CEE 3 x 16A industrial red connector (Ø56 mm)
Vehicle-side connector:	Type 2 (Mennekes) – IEC 62196-2
Cable length:	5 m
Max. Power:	11 kW
Adjustable charging current:	3×6, 3×8, 3×10, 3×13, 3x16A
Charging voltage:	380 – 415V AC (+-20%)
Charging frequency:	50/60 Hz
Insulation resistance:	100 MΩ (500 V DC)
Cable type:	EV 450/750V 5G2.5mm² – 1G0.5mm², EVC07E2E2-F 450/750V 5×2.5mm² – 1×0.75 mm²
Display:	1.8″ LCD
IP protection:	IP65
Rubber cap:	Yes
Mechanical impact protection:	Drop from max. 1 m height or up to 2T vehicle pressure
Operating temperature:	-25°C-(+55)°C
Operating humidity:	5 – 95% RH
Mechanical lifetime:	>10,000x connection without charging
Controller housing size:	250 x 110 x 60 mm
Color:	Black
Weight:	~2.6 kg

Műszaki adatok

Brand	MNC
Barcode	5999117127739
TARIC	8537109199
Packaging	1 db
Súly	3054 g
Méretek	36 × 35 × 10 cm
