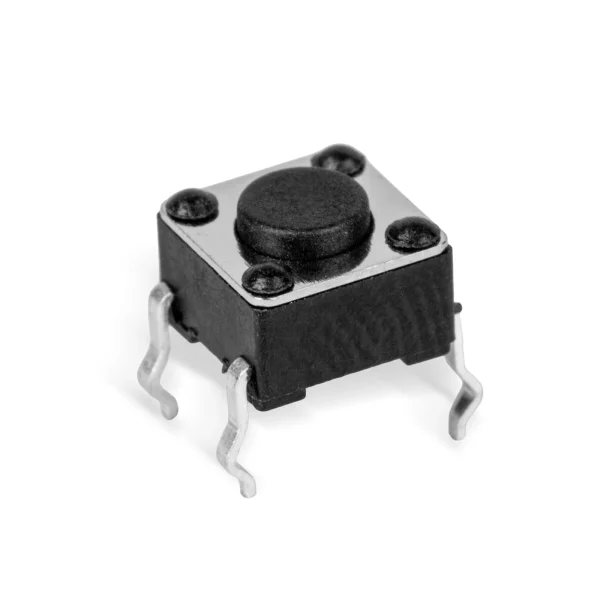

Microswitch 09001

Nettó ár
Price visible after login.
Az ár az áfát nem tartalmazza.

In stock. Dispatch within 1–2 business days.

Sales unit: 20 db.

This product can only be ordered in increments of 20 pcs. For example: 20; 40; 60; 80; …

Microswitch
1 circuit
0,05 A – 12 V DC
(OFF) – ON

Termékleírás

In stock. Dispatch within 1–2 business days.

Sales unit: 20 db.

This product can only be ordered in increments of 20 pcs. For example: 20; 40; 60; 80; …

One circuit microswitch. Ideal for hobby electronics, cars or remote controllers etc. The switch is open in default.

  • 1 circuit
  • 0,05 A – 12 V DC
  • (OFF) – ON
  • Contact resistance: Max. 100 mΩ

Amperage: 0,05 A – 12 V DC
Contact resistance: Max. 100 mΩ
Life time: 50,000 ~ 100,000

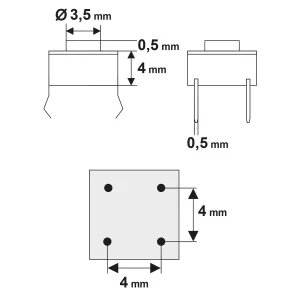

Size: 6 x 6 x 7,4 mm
Housing height: 4 mm
Button diameter: Ø3,5 mm
