Toggle switch
2 circuits
10 A – 250 V
ON – OFF – ON
In stock. Dispatch within 1–2 business days.
Sales unit: 5 db.
This product can only be ordered in increments of 5 pcs. For example: 5; 10; 15; 20; …

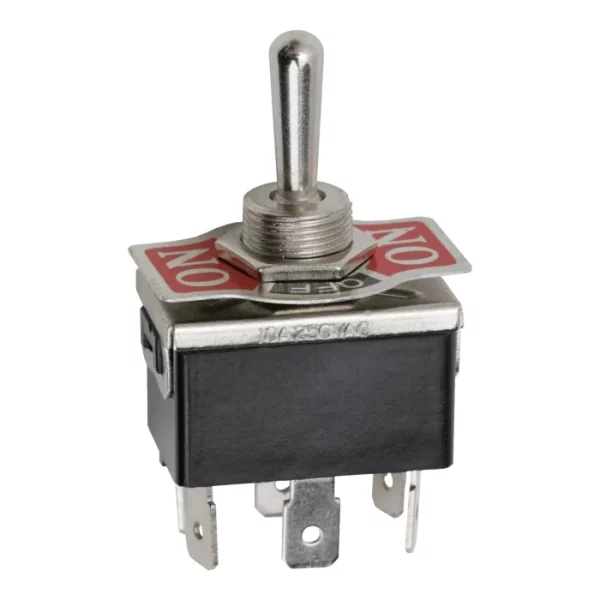

Toggle switch, metal design, suitable for mechanical machines or other equipments. It can be loaded up to 10 A and has a metal front plate.

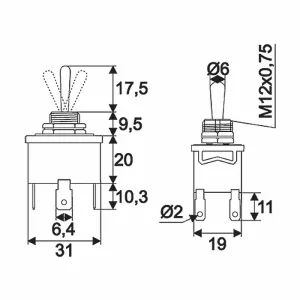

| Switch type: | DPDT |
| Current: | 10 A (15 A) – 250 V AC |
| Installation depth: | 30,3 mm |
| Switch width: | 19 mm |
| Switch length: | 31 mm |
| Toggle diameter: | 6 mm |
| Mountable screw-nut: | M12 x 0,75 mm |
| Connection: | 6x solder terminals |
| Barcode | 5999557127481 |
|---|---|
| TARIC | 8536508000 |
| Packaging | 5 db |
| Súly | 31 g |
| Méretek | 2 × 3,5 × 5,5 cm |
